Power supply/適用電壓: | 220V 380V 440V ±10% |
Slow Start/緩衝功能: | The output can be set slow start with VR ./輸入訊號預設VR調整緩衝啟動 |
Load capacity/負載電流: | 30A 40A 60A 80A 100A 120A 160A |
Frequency/頻率: | 50/60Hz |
Output voltage/輸出電壓: | 0~97%Output |
Applicable Load/適用負載: | Resistance load,電阻性負載 |

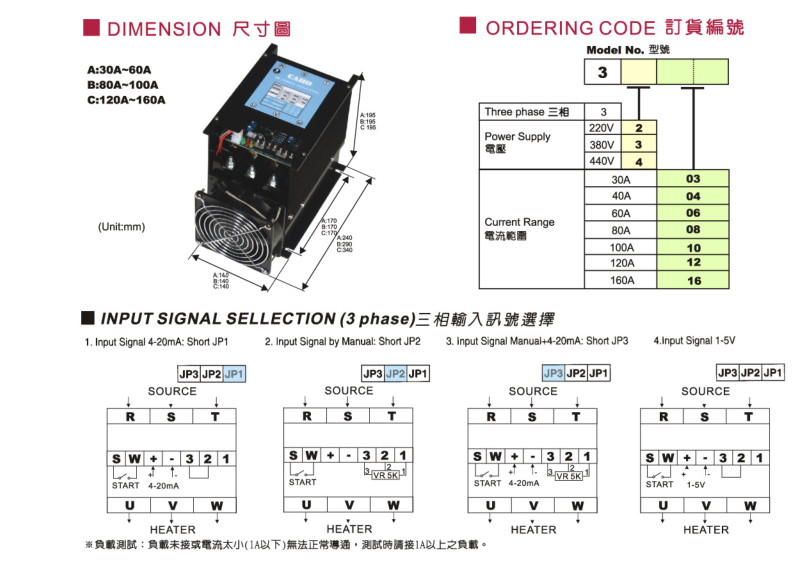

Input Signal/輸入訊號: | 4-20mA,1-5VDC,VR adjustment by Manual/手動調整 |
Cooling System/冷卻方式: | All by forced air cooling/風扇強製冷卻 |
Ambient Temperature/環境溫濕度: | -10℃~55℃ under RH/90%以下 |
Led Display/燈號顯示: | Green Led-power display/綠燈-電源指示燈 Red Led-output display/紅燈-輸出指示燈 Yellow Led-SCR Over-Heart 90℃/黃燈-90℃超溫指示燈 |
Weight/重量: | 30~60A approx./約 4.5Kgs/公斤 80~100A approx./約 5Kgs/公斤 120~160A approx./約 6Kgs/公斤 |
