| Power supply/適用電壓： | 220V 380V 440V ±10% |
| Slow Start/緩衝功能： | The output can be set slow start with VR ./輸入訊號預設VR調整緩衝啟動 |
| Load capacity/負載電流： | 200A 250A 300A 350A |
| Frequency/頻率： | 50/60Hz |
| Output voltage/輸出電壓： | 0~97%Output |
| Applicable Load/適用負載： | Resistance load,電阻性負載 |

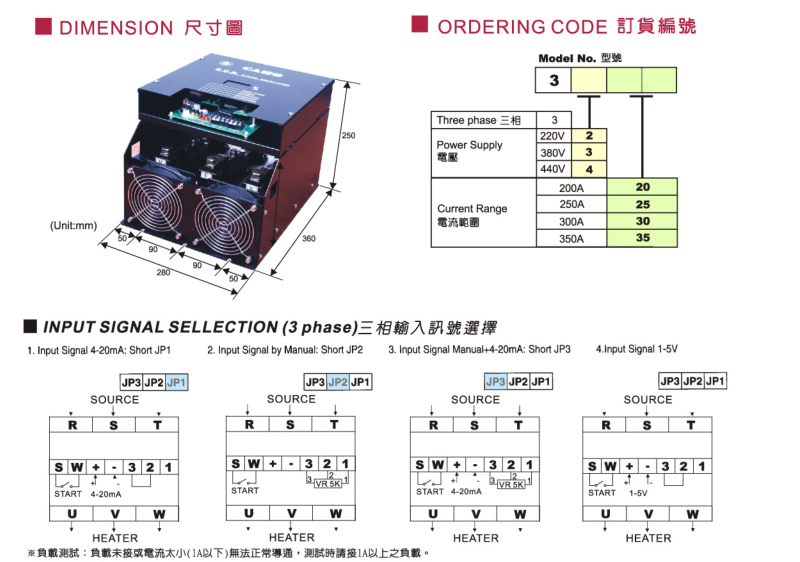

| Input Signal/輸入訊號： | 4-20mA,1-5VDC,VR adjustment by Manual/手動調整 |
| Cooling System/冷卻方式： | All by forced air cooling/風扇強製冷卻 |
| Ambient Temperature/環境溫濕度： | -10℃~55℃ under RH/90%以下 |
| Led Display/燈號顯示: | Green Led-power display/綠燈-電源指示燈 Red Led-output display/紅燈-輸出指示燈 Yellow Led-SCR Over-Heart 85℃/黃燈-85℃超溫指示燈 |
| Weight/重量： | 19.2Kgs/公斤 |
